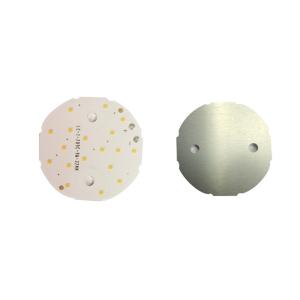

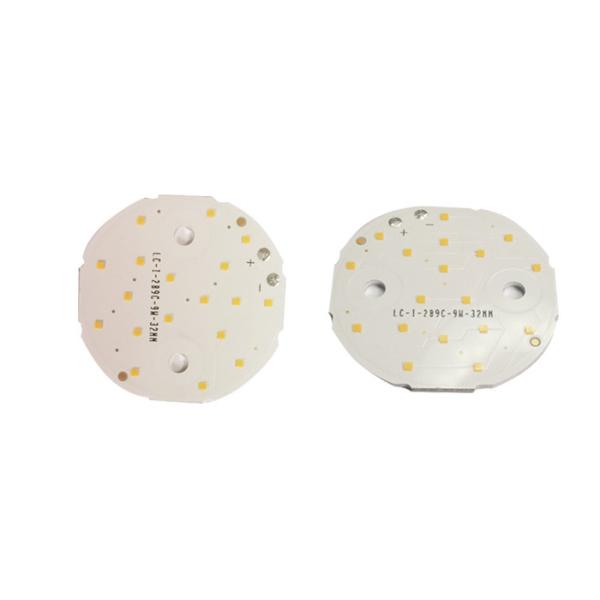

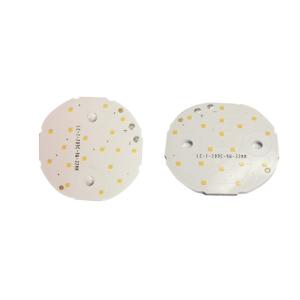

Led Bulb Module Downlight 9W RA: 97 Color Temperature(CCT) 4000K
Product Features:
1. Low thermal resistance, Long lifespan.
2. Without gold in process, low malfunction rate.
3. The be customized, application conveniently.
4. Small size, high optical density, the size unit in below picture
is mm.
Product Parameter:
| Optical Parameter | Value | Panel Parameter | Value |
| Lamp Luminous Flux(lm) | 720lm | Series Parallel Relation | 2 parallel 9 Series |
| Color Temperature(CCT) | 4000K | Electric Current | 0.3A |
| CRI(Ra>) | 97 | Input Voltage(V) | 24V~30V |
| Power | 7.38W | Thermal Conductivity | >2.0W/M.K |
| Lamp Luminous Efficiency(lm/w) | 901Lm/W | Material | A1 panel |
| Model Number: | LHM-2B9CD032-00940AA | Brand Name: | Lohua Light Source |
| Lamp bead model: | 1010030-3232-5X-40AA | Application: | Various lighting places |
| Warranty(Years): | 2 years | Place of Origin: | Shenzhen, Guangdong, China |
| CSP size(mm): | 32*32 | Name: | 9W downlight csp |
| viewing angel(°) | 150° | LED Light Source: | csp lamp bead |
| Luminous intensity: | 530lm | QTY of LED: | 18pcs |
| LED Type | 3232 | PCB Thickness | 1.0mm |
Our Service:
1. In our light decay laboratory, what we pursue is continuous and
keeps on going.
2. Overall quality control system and professional sales team.
3. Innovative research and development department and intellectual
property.
4. National high-tech company, enormous potentiality in enterprise
strength.
Application Range:
It is widely applied in offices, reading rooms, factories, shopping
malls, schools, hospitals, hotels, families,
shops, restaurants, exhibition halls, art halls, museums etc.
